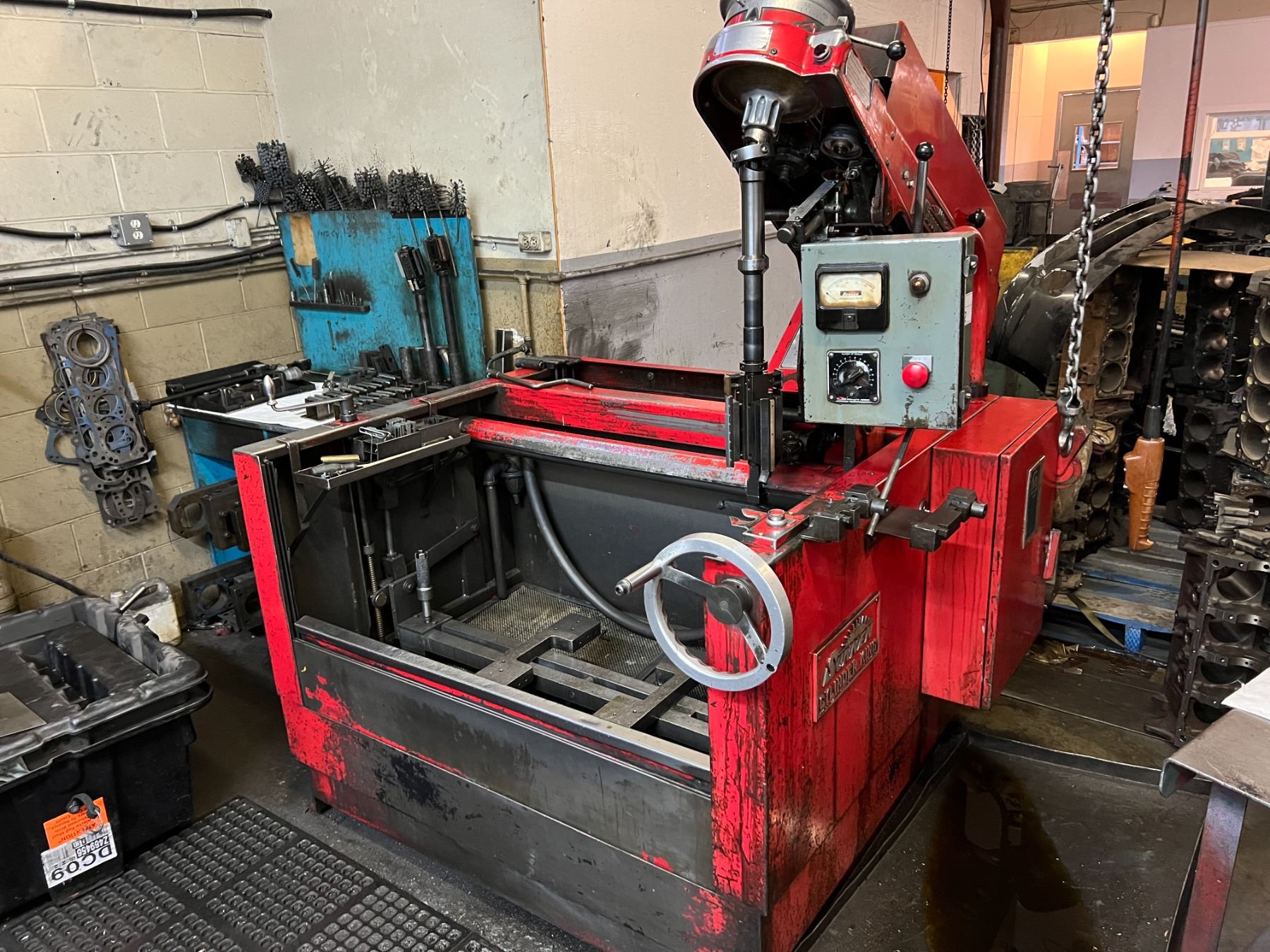

### **Cylinder Line Boring and Honing** **Line boring and honing** are precision machining processes used to ensure proper alignment of the main bearing bores in the engine block. This is crucial for maintaining the integrity of the crankshaft and ensuring smooth engine operation. --- ## **1. Cylinder Line Boring** Line boring is performed when the main bearing bores are **out of alignment**, worn, or distorted due to stress, overheating, or improper assembly. ### **Steps for Line Boring:** 🔧 **Inspection & Measurement:** - Use a **dial bore gauge** or **micrometer** to check the bore diameter and alignment. - Inspect for wear, ovality, or misalignment in the main bearing bores. 🔧 **Machining Process:** - Secure the engine block onto a **line boring machine**. - Align the boring tool precisely to the centerline of the crankshaft. - Bore each main bearing journal to the correct size in multiple passes. 🔧 **Final Check:** - Measure the final bore diameter to ensure consistency. - If necessary, install **oversized main bearing shells** to restore the correct clearance. --- ## **2. Cylinder Line Honing** After boring, line honing is performed to achieve **a smooth and perfectly aligned surface** for the crankshaft bearings. ### **Steps for Line Honing:** 🛠 **Tool Setup:** - Install **honing mandrels** into the main bearing bores. - Use fine abrasives to remove minor imperfections and refine bore size. 🛠 **Honing Process:** - Apply **honing oil** to reduce friction and heat. - Move the honing tool evenly to maintain a straight and round bore. - Check for a consistent surface finish and correct bore size. 🛠 **Final Inspection:** - Measure the final bore diameter and alignment with a **bore gauge**. - Ensure correct oil clearance for the crankshaft bearings. --- ### **Why Line Boring and Honing Matter?** ✅ Ensures **crankshaft alignment**, reducing vibration and wear. ✅ Restores **bearing bore roundness**, improving engine efficiency. ✅ Helps prevent premature **bearing failure and oil pressure issues**. Would you like guidance on recommended tools or troubleshooting misalignment issues? 🔧
