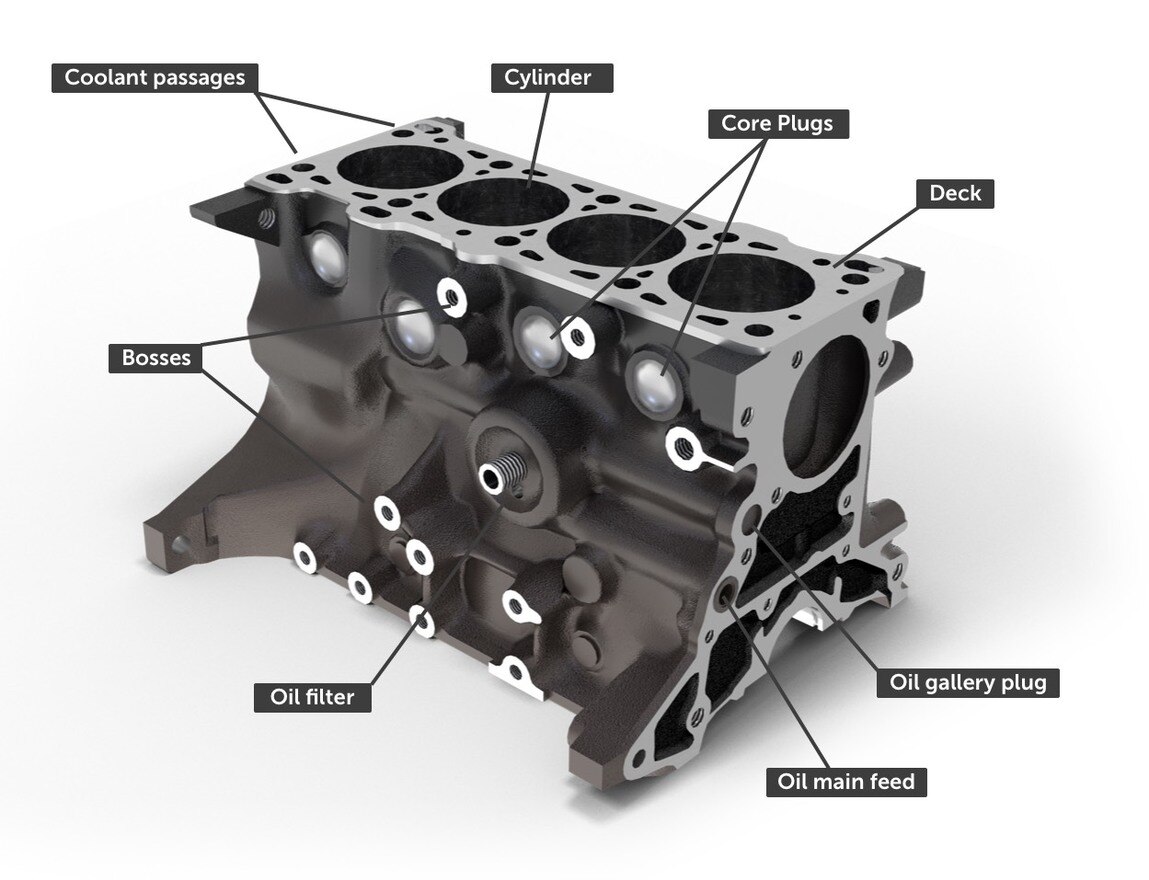

### **Cylinder Head and Block Pressure Testing** **Pressure testing** is a critical diagnostic process used to check for **cracks, leaks, and weaknesses** in the cylinder head and engine block. This helps prevent **coolant and oil leaks, overheating, and loss of compression** before reassembling the engine. --- ## **1. When is Pressure Testing Needed?** ✔ **Overheating issues** (possible hidden cracks in the head or block) ✔ **Coolant loss with no visible leaks** ✔ **White smoke from the exhaust** (coolant entering the combustion chamber) ✔ **Oil contamination (milky appearance from coolant mixing with oil)** ✔ **Blown head gasket symptoms, but no visible gasket failure** --- ## **2. Cylinder Head and Block Pressure Testing Process** ### **🔧 Step 1: Preparation** - **Thoroughly clean** the cylinder head and block. - **Remove all components** (valves, valve springs, camshaft, plugs, and sensors). - **Inspect visually** for obvious cracks, corrosion, or damage. --- ### **🛠 Step 2: Performing the Pressure Test** #### **1. Vacuum Decay or Air Pressure Test** (Quick Diagnostic Test) - **Seal coolant passages** using rubber plugs or metal plates. - Submerge the part in a **water tank** or spray with soapy water. - **Apply compressed air (typically 30-50 psi)** into a coolant passage. - **Watch for bubbles**, which indicate cracks or leaks. #### **2. Hot Tank Pressure Testing** (More Accurate for Small Cracks) - The cylinder head/block is placed in a **heated water tank (~180°F/82°C)**. - **Air pressure is applied (30-60 psi)** to simulate operating conditions. - **Air bubbles escaping from the surface** indicate leaks or hidden cracks. #### **3. Dye Penetrant Testing** (For Detecting Fine Cracks) - Apply a **penetrating dye** to the surface and let it soak into cracks. - Wipe off excess dye and apply a **developer spray**. - The developer highlights cracks by drawing out the dye. #### **4. Magnetic Particle Inspection (For Cast Iron Components Only)** - Uses a **magnetized powder** to detect hairline cracks in iron blocks and heads. - A magnetic field is applied, and the powder **accumulates along crack lines**. --- ### **⚙ Step 3: Evaluating and Repairing Damage** - **Minor cracks** may be repaired with **stitching pins, welding, or epoxy sealants**. - **Severely cracked components** may need **replacement or sleeve inserts**. - **Re-test after repair** to confirm the fix. --- ## **3. Why Pressure Testing is Important?** ✅ Detects **hidden cracks or leaks** before engine reassembly. ✅ Prevents **coolant loss, overheating, and oil contamination**. ✅ Saves money by avoiding **premature engine failure**. ✅ Ensures **engine reliability and longevity**. Would you like recommendations on testing equipment or crack repair methods? 🔧🏁
