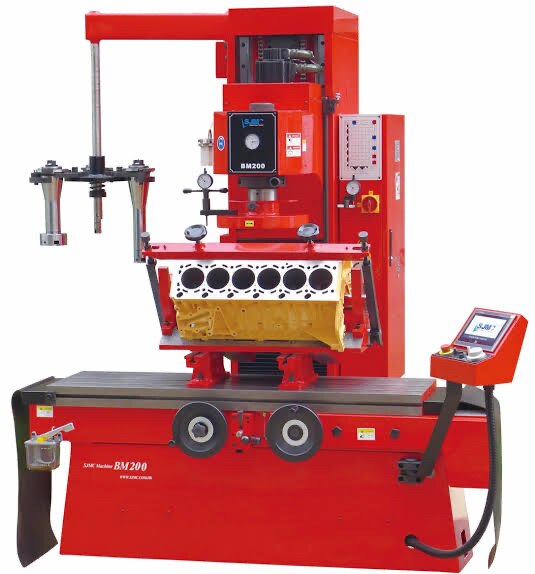

### **Cylinder Block Boring and Honing** Boring and honing are crucial machining processes to restore or resize engine cylinders for proper piston and ring fitment. These steps help maintain compression, reduce oil consumption, and ensure long engine life. --- ## **1. Cylinder Boring** Boring is performed when a cylinder is worn out, has excessive scoring, or is out-of-round. The process enlarges the cylinder to accommodate a new piston size. ### **Steps for Cylinder Boring:** 🔧 **Inspection & Measurement:** - Use a **dial bore gauge** or **micrometer** to check cylinder wear, taper, and out-of-roundness. - Determine the oversize needed (e.g., **0.010”, 0.020”, 0.030”** over standard). 🔧 **Setup & Machining:** - Secure the cylinder block on a **boring machine**. - Align the boring tool precisely with the existing cylinder centerline. - Gradually remove material in multiple passes for accuracy. 🔧 **Final Check:** - Re-measure the bore diameter to ensure it matches the **piston manufacturer’s specifications**. - Leave a small allowance for honing (~0.002” to 0.005”). --- ## **2. Cylinder Honing** Honing provides the final surface finish inside the cylinder, ensuring proper oil retention and piston ring seating. ### **Steps for Cylinder Honing:** 🛠 **Tool Selection:** - Use a **flex hone** (ball hone) for minor refinishing or a **rigid hone** for precise crosshatch patterns. 🛠 **Honing Process:** - Set up the honing tool in a **drill or honing machine**. - Use **oil-based honing fluid** to lubricate and cool the surface. - Move the tool in a **steady up-and-down motion** to achieve the desired crosshatch angle (typically **30°-45°**). - Continue honing until the final bore size is achieved. 🛠 **Final Inspection:** - Check the **crosshatch pattern** for even oil distribution. - Verify the final bore diameter with a **bore gauge**. - Clean the cylinder thoroughly to remove metal particles and debris. --- ### **Why Boring and Honing Matter?** ✅ Restores cylinder roundness and corrects wear. ✅ Ensures **proper piston clearance** for smooth operation. ✅ Helps piston rings **seat correctly**, reducing oil consumption. ✅ Improves **engine longevity and efficiency**. Would you like recommendations on tools or troubleshooting common boring and honing issues? 🚗🔧
