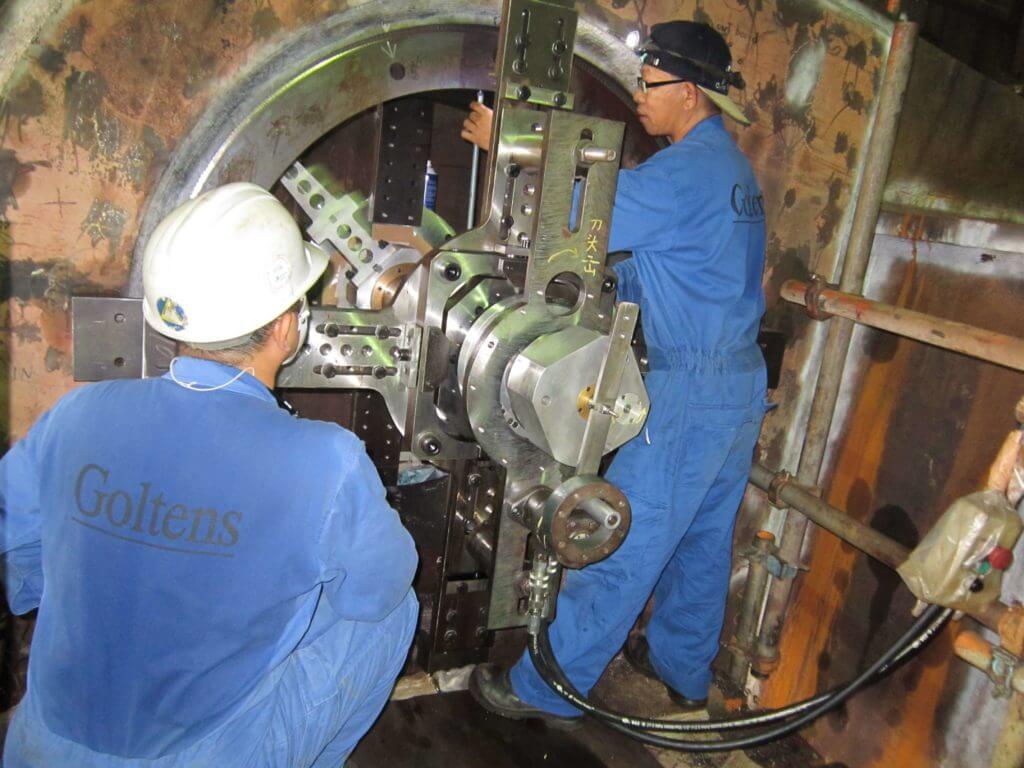

**In Situ Line Boring** is a machining process used to repair or restore the alignment and diameter of worn or damaged holes on large, heavy-duty equipment, particularly when disassembling and transporting the parts is impractical. This method is commonly employed in the repair of industrial machinery like excavators, cranes, mining equipment, and large engines, where the equipment is too large or immobile to be taken to a traditional machine shop. In situ line boring allows for the repair of holes in their original positions, without removing the components or parts, offering a fast and cost-effective solution to extend the lifespan of machinery. ### **Key Components of In Situ Line Boring:** 1. **Boring Bar**: The central tool used for line boring, which is adjustable and customizable to fit the size and shape of the hole to be repaired. It allows for precise machining of the hole's alignment and diameter. 2. **Guides and Support Systems**: In situ line boring requires specialized equipment to support the boring bar and keep it aligned correctly within the worn hole. These guides are positioned around the damaged hole to maintain accuracy during the boring process. 3. **Machining Tools**: Various cutting tools are used on the boring bar, including rotary cutting tools, to precisely remove material from the hole and restore it to the correct specifications. 4. **Portable Milling Equipment**: This is used in the in situ process for tasks like facing and smoothing the surfaces of the bore, ensuring the hole is ready for reassembly with the new or repaired parts. --- ### **Steps Involved in In Situ Line Boring:** 1. **Inspection and Measurement**: - The first step is to inspect and assess the wear or damage to the hole. This involves using precision measuring tools (such as bore gauges or lasers) to determine the alignment, diameter, and depth of the worn-out hole. - A full assessment helps decide whether line boring is the best solution or if other methods, such as welding or reaming, might be more appropriate. 2. **Preparation of the Work Area**: - The area around the worn hole is thoroughly cleaned to remove any debris, rust, or contaminants that could interfere with the process. - Any parts or components that could obstruct the repair are temporarily removed or shielded. 3. **Setting Up the Line Boring Equipment**: - The in situ line boring machine, including the boring bar and support system, is carefully set up around the worn hole. The machine is aligned to ensure the boring bar stays perfectly level and centered throughout the operation. - The boring bar is adjusted to the correct size based on the measurements taken earlier. 4. **Machining the Hole**: - The boring process begins by rotating the cutting tool attached to the boring bar inside the hole. The worn hole is gradually expanded to the correct diameter and aligned to its original position. The machine operator will take multiple passes to achieve the desired precision and alignment. - Precision cutting ensures that the hole’s surface is smooth, and the bore is concentric, ensuring that parts can be properly reassembled. 5. **Measuring and Final Adjustments**: - After each pass, measurements are taken to verify the accuracy of the work. If the hole is not yet to the correct specifications, additional cutting is performed. Final measurements ensure that the hole is now within the required tolerances. 6. **Finishing the Surface**: - In addition to adjusting the diameter and alignment, the bore's surface is finished to ensure smoothness. If necessary, milling or honing tools are used to improve the surface finish, ensuring that new bushings, pins, or sleeves fit correctly. 7. **Reassembly**: - After the hole is bored and finished, any components or parts that were removed during the process are reinstalled. - New parts such as bushings, bearings, or sleeves may be inserted to restore the machine to full functionality. 8. **Testing and Quality Control**: - The machine is tested to ensure that the bore is now properly aligned and functional. Any necessary adjustments are made before the equipment is returned to service. - Additional inspections ensure that there are no further issues with alignment or fit. --- ### **Advantages of In Situ Line Boring:** 1. **Cost-Effective**: - **No Need for Dismantling**: In situ line boring saves on the cost of disassembling large equipment, transporting parts to a machine shop, and reassembling the machinery afterward. The work is done on-site, reducing downtime and logistical costs. - **Faster Turnaround**: Since the repairs are done directly on the equipment, turnaround times are faster compared to traditional methods. 2. **Minimal Equipment Downtime**: - In situ line boring significantly reduces downtime because the machinery does not need to be removed from its operating location for repairs. 3. **Precision and Accuracy**: - The process ensures high precision and accurate alignment, ensuring the bore is restored to exact specifications and the components fit perfectly. 4. **Restoration of Structural Integrity**: - Line boring can restore worn holes to their original dimensions, preserving the structural integrity of the machine, particularly for components like booms, buckets, and housings. 5. **Environmentally Friendly**: - It reduces the need for replacing large parts or entire assemblies, minimizing material waste and the environmental impact of manufacturing new components. --- ### **Common Applications of In Situ Line Boring:** 1. **Mining Equipment**: - Excavators, draglines, and bulldozers in mining operations often suffer from worn-out pivot points, bushings, and other components that require line boring to restore their functionality. 2. **Construction Machinery**: - Cranes, backhoes, and other construction equipment that experience wear on boom arms, bucket pins, and other high-stress points often require in situ line boring to maintain their efficiency. 3. **Marine and Offshore Equipment**: - Large marine equipment, such as ship cranes or offshore oil drilling rigs, may require in situ line boring due to the large size of components and the impracticality of moving parts. 4. **Agricultural Equipment**: - Tractors, harvesters, and other agricultural machines with worn pivot points or axle assemblies often benefit from in situ line boring to restore their performance. 5. **Industrial Manufacturing Equipment**: - In large factories or plants where heavy machinery operates continuously, the need for line boring can arise in machinery such as presses, conveyors, or forklifts, especially on high-stress components like gearboxes or pins. --- ### **Challenges of In Situ Line Boring:** 1. **Precision and Skill**: - Performing line boring requires a highly skilled operator to ensure that the boring bar stays properly aligned, as any misalignment can result in the machine operating inefficiently or damaging other parts. 2. **Limitations on Size**: - While line boring is ideal for medium to large-scale equipment, there are size limits to the components that can be handled effectively on-site. Extremely large machines may require custom solutions or additional equipment. 3. **Tool Wear**: - The harsh operating conditions can cause rapid tool wear, especially when working with hardened steel or heavily worn parts. Regular maintenance of the boring equipment is essential for high-quality results. --- ### **Conclusion:** In situ line boring is a highly efficient and cost-effective method for restoring the alignment and diameter of damaged or worn holes in large machinery. By allowing repairs to be made on-site without removing heavy equipment, this solution minimizes downtime and maximizes operational efficiency, making it a vital process for industries such as mining, construction, agriculture, and manufacturing.
